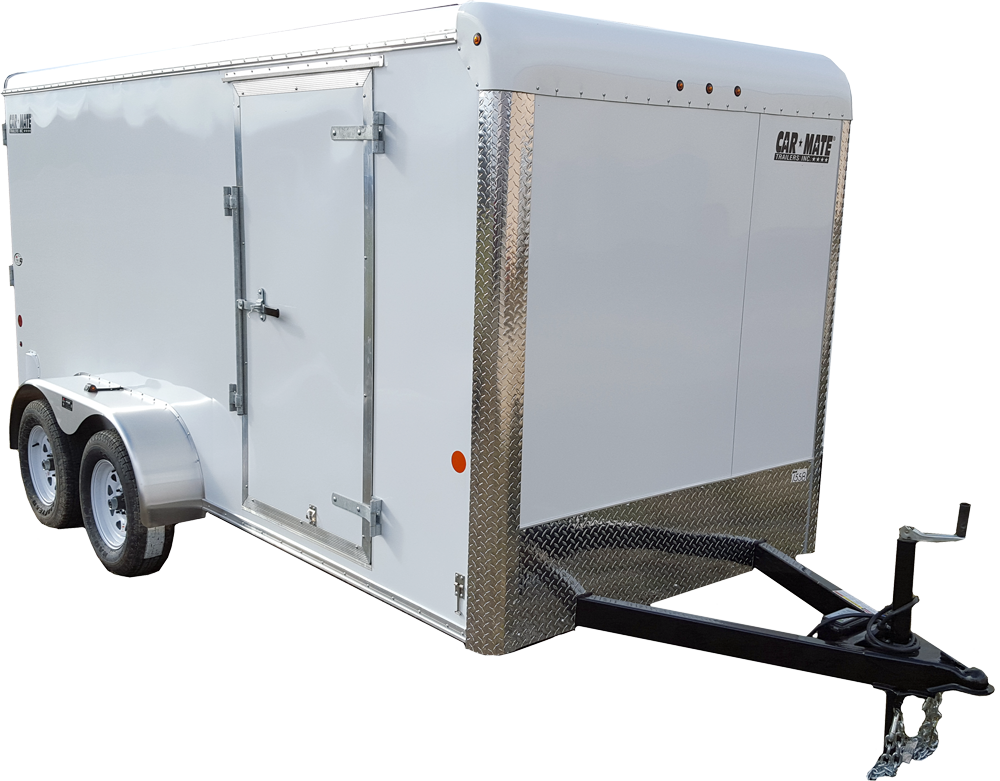

6' Wide Custom Cargo Trailer
Standard Features
- 205/75R15 C Range Tires
- White Spoke Wheels – Bolt Pattern 5 – 4 1/2
- A-Frame Tongue w/Safety Chains and Hooks
- Genuine Dexter Torflex Axle(s) w/E-Z Lube Hubs
- 2000# Tongue Jack
- 3/8″ Plywood Walls – 16″ OC
- .030 Exterior Aluminum (Colors Available)
- .032 Seamless 1 pc. Aluminum Roof – LIFETIME WARRANTY
- Aluminum Roof Bows – 24″ OC
- 3/4″ Plywood Floor – Painted Both Sides – LIFETIME WARRANTY
- 4″ Formed C-Channel Crossmembers – 24″ OC
- Structural Steel Tube Frame
- Aluminum Diamond Plate Corners
- 16″ Aluminum Diamond Plate Front Stone Guard
- Smooth Aluminum Fenders
- Hot Dipped Galvanized Door Hardware
- LED Lighting – LIFETIME WARRANTY
Trailer Dimensions
Specifications
| 6'W Single Axle Custom Cargo Trailer | 6'W Tandem Axle Custom Cargo Trailer | ||||||
|---|---|---|---|---|---|---|---|
| 6' x 10' | 6' x 12' | 6' x 14' | Size | 6' x 10' | 6' x 12' | 6' x 14' | 6' x 16' |
| CM610CC | CM612CC | CM614CC | Model # | CM610CC-HD | CM612CC-HD | CM614CC-HD | CM616CC-HD |
| 2990# | GVWR | 7000# | |||||
| 3500# Dexter Torflex Axle | Axle(s) | 2 - 3500# Dexter Torflex Axles | |||||
| Optional Forward Self Adjusting Brakes w/Breakaway Kit & Charger | Electric Brakes | Standard Forward Self Adjusting Brakes w/Breakaway Kit & Charger | |||||
| 2" | Coupler/Hitch Ball Size | 2 5/16" | |||||
| Flat 4 Pole | Light Plug Connector | 7 Pole | |||||
| 14' 3" | 16' 3" | 18' 3" | Overall Exterior Length | 14' 3" | 16' 3" | 18' 3" | 20' 3" |
| 92" | Overall Exterior Height | 92" | 93" | ||||
| 94" | Overall Exterior Width | 94" | |||||
| 9'8" | 11'8" | 13'8" | Interior Box Length | 9'8" | 11'8" | 13'8" | 15'8" |
| 68" | Interior Box Width | 68" | |||||
| 72" | Interior Height | 72" | |||||
| 19" | Platform Height | 19" | 20" | ||||
| 18" | Hitch Height | 18" | 19" | ||||
| 66" W x 68" H Opening | Double Rear Doors (standard) | 66" W x 68" H Opening | |||||
| 66" W x 65" H Opening | Ramp Rear Door (optional) | 66" W x 65" H Opening | |||||
| 30"W | 36"W | Side Man Door Size (standard) | 24"W | 30"W | 36"W | ||
| 2" x 4" Tube | Frame | 2" x 4" Tube | 2" x 5" Tube | ||||
Trailer Options
Color Options
Request A Quote
Need a quote for a Cargo Trailer? Please click the button below and fill out the necessary information.
Please sure to know the trailer size(s), closest dealer and color option before filling out the form.
